Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface

Name: Black Wire Cloth 1080mesh With Features of Uniform meshes Smooth surface
Brand: Tenglu
Price: 1 USD

China Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface factory

Place of Origin : Hengshui

Brand Name : Tenglu

MOQ : 5 rolls

Price : Negotiable

Packaging Details : Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof

Delivery Time : According to required quantity.

Payment Terms : T/T, L/C at sight

Material : Black Wire Mesh

Type : Wire Cloth

Application : Filters

Weave Style : Plain Weave

Technique : Woven

Wire Diameter : 0.15mm-0.6mm

Certification : ISO9001:2015

Contact Now

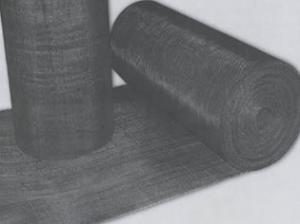

Black iron wire cloth is made in plain steel wire,so it is also called"black wire cloth",which is widely used as filters in rubber industry,plastics industry and grain industry.

Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface

Material: Super quality low carbon steel wire.

Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.

Commen Specifications(Sheet 1)

Black Wire Cloth
Mesh	Wire Diameter (bwg)	Specification	Weight (kg)
18x18	0.45mm	3'x100'	50.8
20x20	0.35mm	3'x100'	34.1
22x22	0.30mm	3'x100'	27
24x24	0.33mm	3'x100'	36.4
26x26	0.33mm	3'x100'	39.4
28x28	0.30mm	3'x100'	35.1
30x30	0.30mm	3'x100'	37.6
32x32	0.20mm	3'x100'	17.8
34x34	0.22mm	3'x100'	22.9
36x36	0.22mm	3'x100'	24.2
38x38	0.22mm	3'x100'	25.6
40x40	0.20mm	3'x100'	22.3
42x42	0.17mm	3'x100'	16.9
44x44	0.17mm	3'x100'	17.7
46x46	0.17mm	3'x100'	18.5
48x48	0.17mm	3'x100'	19.3
50x50	0.17mm	3'x100'	20.1
56x56	0.17mm	3'x100'	22.5
60x60	0.17mm	3'x100'	24.2
Roll Width: 0.6-1.5meter

Commen Specifications(Sheet 2)

Black Wire Cloth Dutch Weave
Mesh	Wire Diameter (mm)
12X64	0.58/0.64
14X88	0.50/0.33
24X110	0.36/0.25
30X150	0.23/0.18
40X200	0.18/0.13

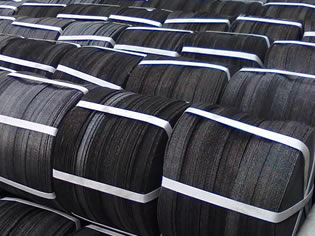

Packing

Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface
